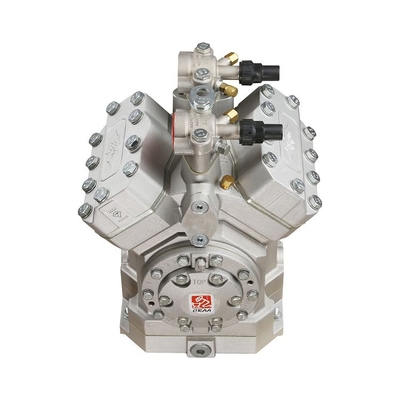

type | compressor |
Brand name | Bitzer |
model | 4NFCY |
Applicable models | Yutong, Jinlong, Neoplan, train, bus, truck |
displacement | 655 |
Cylinder bore | 70mm |
Number of trips | 42mm |
Number of cylinders | 4 |
Cylinder volume | 647cm³ |
Displacement (1450 / 3000rpm) | 56.20/116.40m³/h |
Electromagnetic clutch (12V / 24V DC) | La16 option |
Interface mass distance | 0.0043kgm2 |
Maximum pressure (LP / HP) 1) | 19/28bar |
Connect the oil suction pipe SV | 35mm-1 3/8" |
Connect the discharge line DV | 35mm-1 3/8" |
Lubrication mode | Oil pump |
Oil type R134a | BSE 55 (optional) |
Oil type R22 | B5.2 (standard) |
Oil injection quantity | 1.5dm³ |
Crankcase heating | 70W 12V or 24V DC (optional) |
Pressure relief valve | standard |
Weight (without clutch) | 32.0kg |
Total weight | 35.0kg |
Weight of electromagnetic clutch | 13.2kg |
size | 385*325*370mm |
Package size | 440*350*400mm |
power | 7.5kw |
Cover material | aluminium |
Place of Origin | China |
Condition | Original new |
V-belts | 2*SPB |
